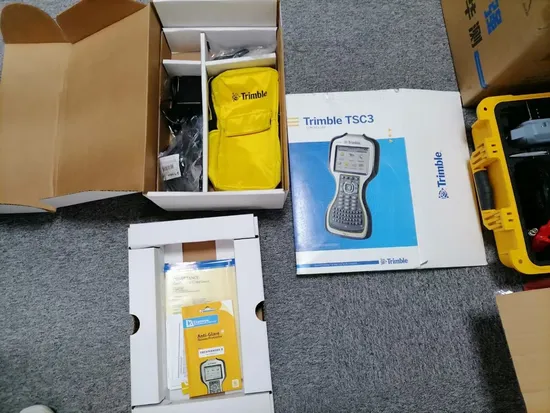

High Performance Trimble Tsc3 Handheld Data Collector Gnss Controller with Software

• Overview
• Product Description
• Specification
• Packing & Delivery
• Company Profile
• FAQ

Overview

Basic Info.

Model NO.	Tsc3
Product Name	Trimble Tsc3 Rtk Controller
Model	Tsc3
Processor	800 MHz
Memory	256 MB
Storage	8GB
Battery Capacity	11.1 V, 2600 mAh, 28.9 Wh Li-ion Battery
Battery Life	34 Hours
Notification LEDs	3 X Tri-Colored
Display	640 X 480 Pixels
Intergrated	GPS, Compass,Accelerometer
Transport Package	Carton Package
Specification	35X45X55 cm
Trademark	Trimble
Origin	China
HS Code	9015800090
Production Capacity	1000PCS/Month

Packaging & Delivery

Package Size35.00cm * 45.00cm * 55.00cm Package Gross Weight6.000kg

Product Description

Shanghai Newdi Navigation Technology Company Limited (NEWDI) was established in Shanghai China. We are engaged in providing high-precision surveying and mapping instrument. The involved industries include land survey, construction, marine and UAVTill now, we have a professional sales team with 5 year experience in average. Branch office in the USA, DUBAI, India and South Africa offers local technical support to word wide users. We put technical support and ll be input our Rafter sale service as our highest level principle. 10% of our revenue is input into R&D every year. We never stop developing a better product for our customer. Quality issues are at the forefront of NEWDI's philosophy. NEWDI received ISO 9001 certification from International Standards Organization. It applies to all aspects of NEWDI's every development process and workflow, covering all steps from the initial design to the final delivery. Our distribution network covers more 10 countries. We take the mission to make survey easier. We are proud of the value that customer benefit from our service and returns continuous trust to NEWDI.

1. who are we?
We are based in Shanghai, China, start from 2016,sell to Southeast Asia(30.00%),Africa(25.00%),South America(15.00%),North America(10.00%),South Asia(5.00%),Mid East(5.00%),Eastern Europe(3.00%),Central America(2.00%),Oceania(2.00%),SouthernEurope(2.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS Receiver,Total Station,Level,UAV,Marine Product

4. why should you buy from us not from other suppliers?
Shanghai Newdi Navigation Technology Company Limited (NEWDI) was established in Shanghai China. We are engaged in providing high-precision surveying and mapping instrument. The involved industries include land survey, construction, marine and UAVTill now.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Product Description Specification

ELECTRICAL SPECIFICATIONS
Processor	Texas Instrument Sitara™ 3715 series ARM® Cortex™-A8 Processor
Memory	256 MB RAM
Storage	8 GB non-volatile NAND Flash onboard
Expansion	SDHC memory slot, USB host internal embedded expansion slot (for future use)
Batteries	11.1 V, 2600 mAh, 28.9 Wh Li-Ion rechargeable pack	Battery life of 34 hours under normal operating conditions
		Full charge in 3.0 hours
Notification LEDs	3 x tri-colored notification LEDs
Display	4.2 in (107 mm) landscape VGA display, 640 x 480 pixels
	Sunlight-readable color TFT with LED backlight, resistive touchscreen
Keyboard	Full QWERTY keypad with 10-key number pad, directional buttons, and 4 programmable buttons
	"ABCD" style keypad option with 10-key number pad, directional buttons, and 4 programmable buttons available
Audio	Integrated speaker and microphone with 3.5 mm stereo headset connection for audio system events, warnings, and notifications
I/O	USB Host (full speed), USB Client (high speed), DC power port, 9-pin serial RS-232
Wireless	Integrated 2.0+EDR, integrated Wi-Fi 802.11 b/g
	2/6 Mbit/s 3G HSDPA GSM WWAN
	Integrated 2.4 GHz frequency-hopping spread-spectrum radio modem (optional)
	Integrated quad-band GSM/GPRS/EDGE	850/900/1800/1900 MHz
	Dual band CDMA2000 in Bands BC0 and BC1 (800/900MHz)
Camera / GPS / Compass / Accelerometer	5 MP auto focus camera with dual white light LED flash, LED flashlight function
	Integrated GPS (WAAS enabled)
	Integrated compass
	Integrated accelerometer
